3 Flute HSS-AL End Mill - Long Series - TiAlN Coated

Arc LogoPremium» HSS-AL TiAlN Coated End Mills

The ARC Premium branded range of end mills are made from a traceable grade of material. They are precision manufactured for consistency, quality and accuracy.

TiAlN Coated HSS-AL End Mills
Arc Premium TiAlN coated end mills are coated with the highly regarded Balzers Balinit® Futura Nano TiAlN (titanium aluminium nitride) coating offering high-performance machining and long tool life. Depending upon machine limitations, TiAlN coated end mills can operate at speeds up to 100% higher than uncoated end mills. Arc Premium TiAlN coated end mills are recommended for machining steel, cast iron and stainless steel. Click for more...

HSS-Al
3 Flute
Square End Cutter
30° Helix Angle
Suitable for plunge, ramp and side cuts
Weldon Shank
Standard End Mill
These end mills are manufactured to DIN 844 standards
TiAln Coated
h10 tolerance on diameter D1 (cutting diameter)

Click the buttons above for more information

  • For specifications, please click the Specification tab.
3 Flute HSS-AL End Mill Long Series TiAlN Coated

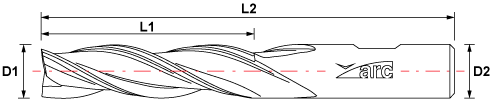

3 Flute HSS-AL End Mill - Long Series - TiAlN Coated - Drawing
Code Cutter Diameter
D1
Shank Diameter
D2
Flute Length
L1
O.A. Length
L2
060-283-05002 2.0mm 6.0mm 10mm 54mm
060-283-05003 3.0mm 6.0mm 12mm 56mm
060-283-05004 4.0mm 6.0mm 19mm 63mm
060-283-05005 5.0mm 6.0mm 24mm 68mm
060-283-05006 6.0mm 6.0mm 24mm 68mm
060-283-05008 8.0mm 10.0mm 38mm 88mm
060-283-05010 10.0mm 10.0mm 45mm 95mm
060-283-05012 12.0mm 12.0mm 53mm 110mm
060-283-05014 14.0mm 12.0mm 53mm 110mm
060-283-05016 16.0mm 16.0mm 63mm 123mm
060-283-05002 2mm 3F HSS-AL End Mill Long TiAlN £6.73 Excl.VAT
£8.08 Inc.VAT
In
Stock
Qty:
Add to Basket
060-283-05003 3mm 3F HSS-AL End Mill Long TiAlN £6.73 Excl.VAT
£8.08 Inc.VAT
In
Stock
Qty:
Add to Basket
060-283-05004 4mm 3F HSS-AL End Mill Long TiAlN £6.73 Excl.VAT
£8.08 Inc.VAT
In
Stock
Qty:
Add to Basket
060-283-05005 5mm 3F HSS-AL End Mill Long TiAlN £6.73 Excl.VAT
£8.08 Inc.VAT
In
Stock
Qty:
Add to Basket
060-283-05006 6mm 3F HSS-AL End Mill Long TiAlN £6.73 Excl.VAT
£8.08 Inc.VAT
Out of
Stock
Estimated Back in Stock date: To be advised
060-283-05008 8mm 3F HSS-AL End Mill Long TiAlN £9.05 Excl.VAT
£10.86 Inc.VAT
In
Stock
Qty:
Add to Basket
060-283-05010 10mm 3F HSS-AL End Mill Long TiAlN £9.05 Excl.VAT
£10.86 Inc.VAT
In
Stock
Qty:
Add to Basket
060-283-05012 12mm 3F HSS-AL End Mill Long TiAlN £11.01 Excl.VAT
£13.21 Inc.VAT
In
Stock
Qty:
Add to Basket
060-283-05014 14mm 3F HSS-AL End Mill Long TiAlN £12.92 Excl.VAT
£15.50 Inc.VAT
In
Stock
Qty:
Add to Basket
060-283-05016 16mm 3F HSS-AL End Mill Long TiAlN £14.93 Excl.VAT
£17.92 Inc.VAT
In
Stock
Qty:
Add to Basket
