2 Flute Carbide End Mill For Aluminium - Long Series - Uncoated

Arc LogoPremium» Uncoated Carbide End Mills

The ARC Premium branded range of end mills are made from a traceable grade of material. They are precision manufactured for consistency, quality and accuracy.

Uncoated Carbide End Mills
Arc Premium Uncoated end mills are specially ground for milling aluminium. Sharper cutting edges are possible with uncoated end mills. Also, where indicated, the higher helix angle of 45° helps to evacuate the chips quickly thus reducing the amount of heat generated and producing a good surface finish. Arc Premium Uncoated end mills are ideal for machining aluminium, brass, plastics and other non-ferrous materials. Click for more...

Micro-Grain Carbide
2 Flute
Square End Cutter
45° Helix Angle
Suitable for plunge, ramp and side cuts
Standard End Mill
Optimised for cutting aluminium alloys
Uncoated
h10 tolerance on diameter D1 (cutting diameter)

Click the buttons above for more information

  • For specifications, please click the Specification tab.
2 Flute Carbide End Mill For Aluminium Long Series Uncoated

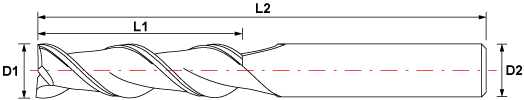

2 Flute Carbide End Mill For Aluminium - Long Series - Uncoated - Drawing
Code Cutter Diameter
D1
Shank Diameter
D2
Flute Length
L1
O.A. Length
L2
Run Out
060-284-06002 2.0mm 4.0mm 8mm 60mm <0.02mm
060-284-06003 3.0mm 4.0mm 12mm 60mm <0.02mm
060-284-06004 4.0mm 4.0mm 15mm 60mm <0.02mm
060-284-06005 5.0mm 6.0mm 25mm 75mm <0.02mm
060-284-06006 6.0mm 6.0mm 25mm 75mm <0.02mm
060-284-06008 8.0mm 8.0mm 30mm 75mm <0.02mm
060-284-06010 10.0mm 10.0mm 40mm 100mm <0.02mm
060-284-06012 12.0mm 12.0mm 45mm 100mm <0.02mm
060-284-06002 2mm 2F Carbide End Mill For Alu Long £9.19 Excl.VAT
£11.03 Inc.VAT
Out of
Stock
Estimated Back in Stock date: To be advised
060-284-06003 3mm 2F Carbide End Mill For Alu Long £9.19 Excl.VAT
£11.03 Inc.VAT
Out of
Stock
Estimated Back in Stock date: To be advised
060-284-06004 4mm 2F Carbide End Mill For Alu Long £9.19 Excl.VAT
£11.03 Inc.VAT
In
Stock
Qty:
Add to Basket
060-284-06005 5mm 2F Carbide End Mill For Alu Long £12.59 Excl.VAT
£15.11 Inc.VAT
Out of
Stock
Estimated Back in Stock date: To be advised
060-284-06006 6mm 2F Carbide End Mill For Alu Long £12.59 Excl.VAT
£15.11 Inc.VAT
In
Stock
Qty:
Add to Basket
060-284-06008 8mm 2F Carbide End Mill For Alu Long £17.96 Excl.VAT
£21.55 Inc.VAT
In
Stock
Qty:
Add to Basket
060-284-06010 10mm 2F Carbide End Mill For Alu Long £27.94 Excl.VAT
£33.53 Inc.VAT
In
Stock
Qty:
Add to Basket
060-284-06012 12mm 2F Carbide End Mill For Alu Long £37.27 Excl.VAT
£44.72 Inc.VAT
In
Stock
Qty:
Add to Basket
