3 Flute Carbide End Mill - Long Series - TiAlN Coated

Arc LogoPremium» TiAlN Coated Carbide End Mills

The ARC Premium branded range of end mills are made from a traceable grade of material. They are precision manufactured for consistency, quality and accuracy.

TiAlN Coated Carbide End Mills
Arc Premium TiAlN coated end mills are coated with the highly regarded Balzers Balinit® Futura Nano TiAlN (titanium aluminium nitride) coating offering high-performance machining and long tool life. Depending upon machine limitations, TiAlN coated end mills can operate at speeds up to 100% higher than uncoated end mills. Arc Premium TiAlN coated end mills are recommended for machining steel, cast iron and stainless steel. Click for more...

Micro-Grain Carbide
3 Flute
Square End Cutter
30° Helix Angle

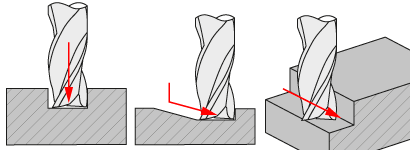

Suitable for plunge, ramp and side cuts
Standard End Mill
For Cutting steel up to HRC45 Hardness
These end mills are manufactured to DIN 6527 standards
TiAln Coated
h10 tolerance on diameter D1 (cutting diameter)

Click the buttons above for more information

  • For specifications, please click the Specification tab.
3 Flute Carbide End Mill Long Series TiAlN Coated

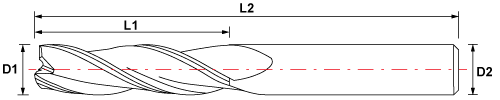

3 Flute Carbide End Mill - Long Series - TiAlN Coated - Drawing
Code Cutter Diameter
D1
Shank Diameter
D2
Flute Length
L1
O.A. Length
L2
060-284-03003 3.0mm 3.0mm 15mm 57mm
060-284-03004 4.0mm 4.0mm 19mm 57mm
060-284-03005 5.0mm 5.0mm 25mm 63mm
060-284-03006 6.0mm 6.0mm 25mm 75mm
060-284-03008 8.0mm 8.0mm 30mm 75mm
060-284-03010 10.0mm 10.0mm 35mm 75mm
060-284-03012 12.0mm 12.0mm 45mm 100mm
060-284-03003 3mm 3F Carbide End Mill Long TiAlN £8.87 Excl.VAT
£10.64 Inc.VAT
In
Stock
Qty:
Add to Basket
060-284-03004 4mm 3F Carbide End Mill Long TiAlN £9.53 Excl.VAT
£11.44 Inc.VAT
Out of
Stock
Estimated Back in Stock date: To be advised
060-284-03005 5mm 3F Carbide End Mill Long TiAlN £11.45 Excl.VAT
£13.74 Inc.VAT
In
Stock
Qty:
Add to Basket
060-284-03006 6mm 3F Carbide End Mill Long TiAlN £13.53 Excl.VAT
£16.24 Inc.VAT
In
Stock
Qty:
Add to Basket
060-284-03008 8mm 3F Carbide End Mill Long TiAlN £17.68 Excl.VAT
£21.22 Inc.VAT
In
Stock
Qty:
Add to Basket
060-284-03010 10mm 3F Carbide End Mill Long TiAlN £24.33 Excl.VAT
£29.20 Inc.VAT
In
Stock
Qty:
Add to Basket
060-284-03012 12mm 3F Carbide End Mill Long TiAlN £38.22 Excl.VAT
£45.86 Inc.VAT
In
Stock
Qty:
Add to Basket
