SIEG X2.7 Mill

NEW

SIEG X2.7 Mill - Belt Drive with Brushed Motor

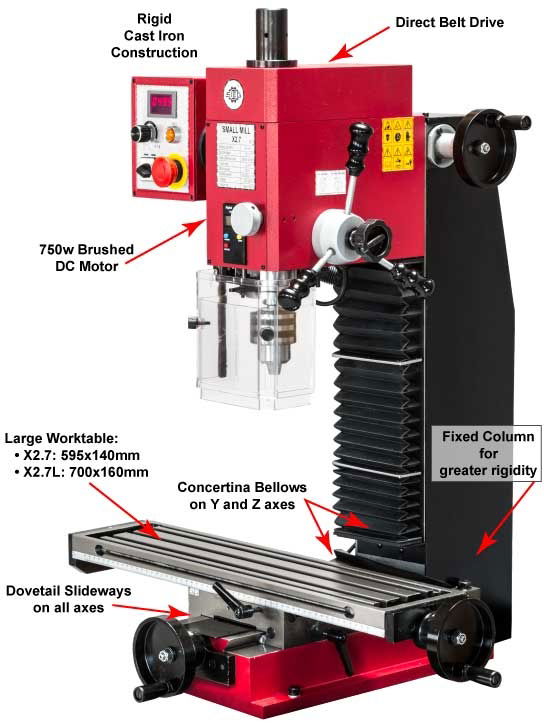

Features

  • Rigid Cast Iron Construction
  • Fixed Column for greater rigidity
  • Dovetail Slideways
  • Direct Belt Drive
  • 750w Brushed DC Motor
  • Large Worktable on the X2.7 Mill (595x140mm - Larger than standard X2 Mill)

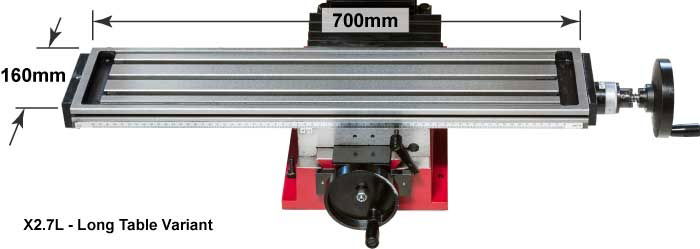

  • Even Larger Worktable on X2.7L long table variant (700x160mm)
  • Choice of R8 or MT3 Spindle Taper

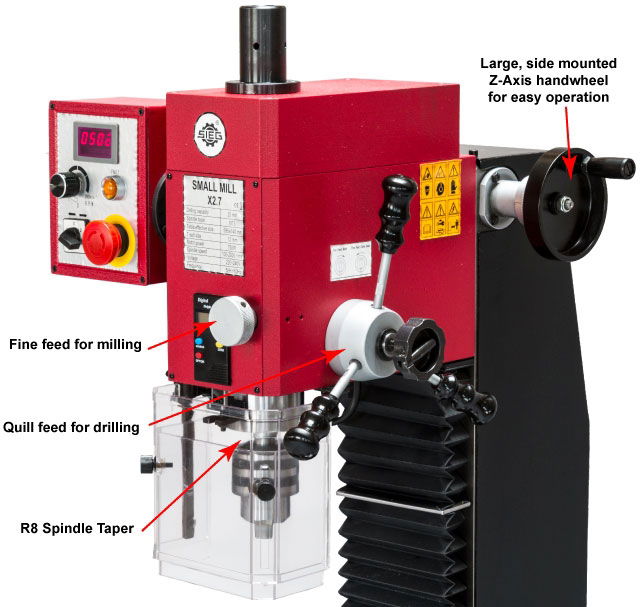

  • Large, side mounted Z-Axis handwheel for easy operation
  • Easily accessible Control Panel with:
    • Variable Speed Control
    • Forward and Reverse Switch
    • Spindle Speed Display
    • Emergency Stop Button
    • Fault Indicator
  • Concertina Bellows on Y and Z axes
  • Quill feed for drilling
  • Fine feed for milling
  • Digital Readout on quill for depth reading

Carriage £65.00 to UK mainland only (excluding Highlands and islands - price on application).

Delivery: When the machine is ready, we will contact you to arrange a convenient day for delivery.

Information
  • This machine is sold for hobby use only.
  • Overseas customers (including UK Islands) thinking of ordering a machine, please Read This first.
Specifications X2.7 X2.7L
Drilling Capacity 20mm
End Milling Capacity 16mm
Face Milling Capacity 50mm
Tapping Capacity N/A
Spindle Stroke 70mm
Throat 190mm *
Spindle Taper Choice of MT3 or R8
Spindle to Table
Distance
MT3 Spindle 345mm
R8 Spindle 315mm
Guard to Table Distance 230mm
Spindle Speed (Variable) 100-2000 rpm ± 10%
Table Cross Travel 180mm
Table Longitudinal Travel 395mm 500mm
Table Size 520x100mm 625x125mm
Effective Table Size 595x140mm 700x160mm
T-Slot Size 12mm (M10 T-Nuts)
Table Drain Hole Thread M16x1.5
Motor Type DC Brushed
Motor Output 750w
Input Voltage 220-240VAC 50/60Hz

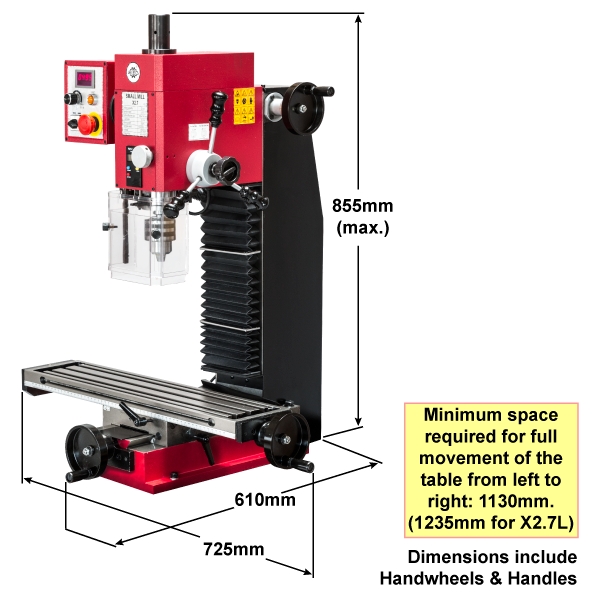

Overall
Dimensions
Width 740mm 860mm
Depth 620mm
Height 850mm
Weight (Net/Gross) 88kg/124kg 99kg/128kg

* 165mm with bellows fitted. Bottom of bellows are held in place by magnets and can be raised above work when maximum clearance is required.

080-030-00320 X2.7 Mill - R8 Metric £867.83 Excl.VAT
£1,041.40 Inc.VAT
Out of
Stock
Estimated Back in Stock date: To be advised
080-030-00322 X2.7L Mill - R8 Metric £890.43 Excl.VAT
£1,068.52 Inc.VAT
In
Stock
Qty:
Add to Basket
080-030-00327 X2.7L Mill - MT3 Metric RRP: £1,068.52 Inc.VAT
£804.17 Excl.VAT
£965.00 Inc.VAT
In
Stock
Qty:
Add to Basket
