CCGT 80° Diamond Type Uncoated Carbide Inserts for Non-Ferrous Metals

CCGT 80° Diamond Type Uncoated Carbide Inserts for Non-Ferrous Metals

Ground and Polished inserts made specifically for cutting:

  • Aluminium
  • Brass
  • Other non-ferrous metals

These inserts have a steep top rake and ground edges for a good surface finish and high resistance to edge build-up.

CCGT 80 deg Diamond Type Uncoated Carbide Inserts for Non-Ferrous Metals

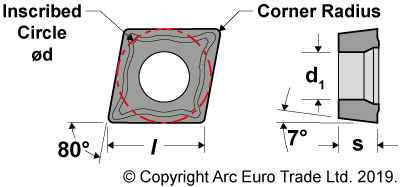

Code Type Corner Radius l ød s d1
060-326-31624 CCGT 060204 0.4mm 6.45mm 6.35mm 2.38mm 2.8mm
060-326-31626
060-326-31934 CCGT 09T304 0.4mm 9.7mm 9.525mm 3.97mm 4.4mm
060-326-31936
060-326-31938 CCGT 09T308 0.8mm 9.7mm 9.525mm 3.97mm 4.4mm
060-326-31940
060-326-31624 CCGT 060204 Uncoated Carbide Insert 80deg. (Non-Ferrous) £2.11 Excl.VAT
£2.53 Inc.VAT
In
Stock
Qty:
Add to Basket
060-326-31626 CCGT 060204 Uncoated Carbide Insert 80deg. Non-Ferrous-10pcs £17.93 Excl.VAT
£21.52 Inc.VAT
In
Stock
Qty:
Add to Basket
060-326-31934 CCGT 09T304 Uncoated Carbide Insert 80deg. (Non-Ferrous) £2.49 Excl.VAT
£2.99 Inc.VAT
In
Stock
Qty:
Add to Basket
060-326-31936 CCGT 09T304 Uncoated Carbide Insert 80deg. Non-Ferrous-10pcs £21.08 Excl.VAT
£25.30 Inc.VAT
In
Stock
Qty:
Add to Basket
060-326-31938 CCGT 09T308 Uncoated Carbide Insert 80deg. (Non-Ferrous) £2.49 Excl.VAT
£2.99 Inc.VAT
In
Stock
Qty:
Add to Basket
060-326-31940 CCGT 09T308 Uncoated Carbide Insert 80deg. Non-Ferrous-10pcs £21.08 Excl.VAT
£25.30 Inc.VAT
In
Stock
Qty:
Add to Basket
