ARC NCIH Part Off Blade

ARC NCIH Part Off Blade

Double ended, self locking parting blades.

Each tool holder includes:

  • GTN TiN coated insert
  • Insert extractor

Caution: Safe blade extension outside the holder is dependent on various factors which include machine rigidity and the material being machined. Extending the blade beyond the number 2 (which represents approx. 2cm in from the cutting edge) on the scale increases the risk of vibration and tool breakage.

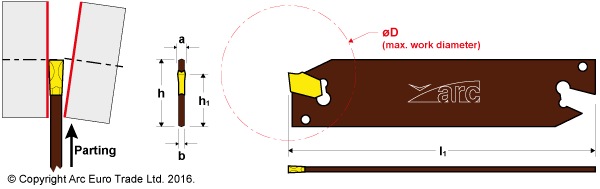

ARC NCIH Part Off Blade - Diagrams

Code Type øD h h1 b l1 a Suitable Inserts
060-325-22102 NCIH 19-2 38mm 19.5mm 15.5mm 1.8mm 86mm 2mm GTN2
060-325-22103 NCIH 19-3 38mm 19.5mm 15.5mm 2.4mm 81mm 3mm GTN3
060-325-22102 Part Off Blade with GTN2 TiN Coated Insert £12.33 Excl.VAT
£14.80 Inc.VAT
In
Stock
Qty:
Add to Basket
060-325-22103 Part Off Blade with GTN3 TiN Coated Insert £12.33 Excl.VAT
£14.80 Inc.VAT
In
Stock
Qty:
Add to Basket
060-326-20002 GTN2 TiN Coated Carbide Insert £2.11 Excl.VAT
£2.53 Inc.VAT
In
Stock
Qty:
Add to Basket
060-326-20012 GTN2 TiN Coated Carbide Insert - 10pcs £17.12 Excl.VAT
£20.54 Inc.VAT
In
Stock
Qty:
Add to Basket
060-326-20003 GTN3 TiN Coated Carbide Insert £1.94 Excl.VAT
£2.33 Inc.VAT
In
Stock
Qty:
Add to Basket
060-326-20013 GTN3 TiN Coated Carbide Insert - 10pcs £18.26 Excl.VAT
£21.91 Inc.VAT
In
Stock
Qty:
Add to Basket
