3 Flute HSS-AL End Mill - Standard Length - TiAlN Coated

Arc LogoPremium» HSS-AL TiAlN Coated End Mills

The ARC Premium branded range of end mills are made from a traceable grade of material. They are precision manufactured for consistency, quality and accuracy.

TiAlN Coated HSS-AL End Mills
Arc Premium TiAlN coated end mills are coated with the highly regarded Balzers Balinit® Futura Nano TiAlN (titanium aluminium nitride) coating offering high-performance machining and long tool life. Depending upon machine limitations, TiAlN coated end mills can operate at speeds up to 100% higher than uncoated end mills. Arc Premium TiAlN coated end mills are recommended for machining steel, cast iron and stainless steel. Click for more...

HSS-Al
3 Flute
Square End Cutter
30° Helix Angle
Suitable for plunge, ramp and side cuts
Weldon Shank
Standard End Mill
These end mills are manufactured to DIN 844 standards
TiAln Coated
h10 tolerance on diameter D1 (cutting diameter)

Click the buttons above for more information

  • For specifications, please click the Specification tab.

New Sizes added: 18mm & 20mm

3 Flute HSS-AL End Mill Standard Length TiAlN Coated

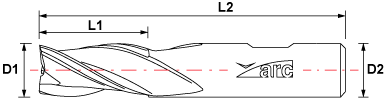

3 Flute HSS-AL End Mill - Standard Length - TiAlN Coated - Drawing
Code Cutter Diameter
D1
Shank Diameter
D2
Flute Length
L1
O.A. Length
L2
060-283-04002 2.0mm 6.0mm 7mm 51mm
060-283-04003 3.0mm 6.0mm 8mm 52mm
060-283-04004 4.0mm 6.0mm 11mm 55mm
060-283-04005 5.0mm 6.0mm 13mm 57mm
060-283-04006 6.0mm 6.0mm 13mm 57mm
060-283-04008 8.0mm 10.0mm 19mm 69mm
060-283-04010 10.0mm 10.0mm 22mm 72mm
060-283-04012 12.0mm 12.0mm 26mm 83mm
060-283-04014 14.0mm 12.0mm 26mm 83mm
060-283-04016 16.0mm 16.0mm 32mm 92mm
060-283-04018 18.0mm 16.0mm 32mm 92mm
060-283-04020 20.0mm 20.0mm 38mm 104mm
