Model 000 Parting Tool Holder - Angled

The Model 000 Angled Parting Blade holder will hold parting blades up to 13.5x3.2mm.

Parting Blade Holder Dimensions

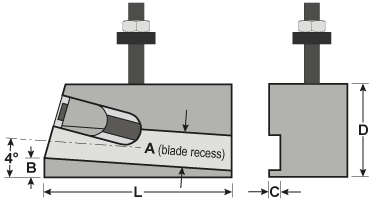

Parting Blade Toolholder Drawing
A B C D L
13.5mm 6.25mm 3.2mm 35mm 54mm
All dimensions are nominal
Suggested Blades:
For fine work: 060-060-01405 - 1.5x13x85mm
For heavier work: 060-060-01200 - 3/32" x 1/2" x 4.1/2"

Note: This tool holder is not suitable for Mini-Lathes since the 4° angle raises the tool too high for these machines. Please choose the Horizontal parting tool holder 090-070-00356 for use with Mini-Lathes.

090-070-00355 Model 000 Parting Blade Holder (Angled) £17.70 Excl.VAT
£21.24 Inc.VAT
In
Stock
Qty:
Add to Basket
060-060-01405 HSS-Co5 Parting Off Blade 1.5x13x85mm £5.67 Excl.VAT
£6.80 Inc.VAT
In
Stock
Qty:
Add to Basket
060-060-01200 HSS Parting Off Blade 3/32"x1/2"x4.1/2" £5.82 Excl.VAT
£6.98 Inc.VAT
In
Stock
Qty:
Add to Basket
