Model 000 Parting Tool Holder - Horizontal

The Model 000 Horizontal Parting Blade holder will hold parting blades up to 13.5x3.2mm.

Parting Blade Holder Dimensions

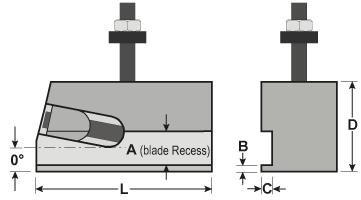

Parting Blade Toolholder Drawing
A B C D L
13.5mm 2.5mm 3.2mm 35mm 54mm
All dimensions are nominal
Suggested Blades:
For fine work: 060-060-01405 - 1.5x13x85mm
For heavier work: 060-060-01200 - 3/32" x 1/2" x 4.1/2"

The horizontal parting tool holder is suitable for use with Mini-Lathes.

090-070-00356 Model 000 Parting Blade Holder (Horizontal) £18.34 Excl.VAT
£22.01 Inc.VAT
In
Stock
Qty:
060-060-01405 HSS-Co5 Parting Off Blade 1.5x13x85mm £5.87 Excl.VAT
£7.04 Inc.VAT
In
Stock
Qty:
060-060-01200 HSS Parting Off Blade 3/32"x1/2"x4.1/2" £6.03 Excl.VAT
£7.24 Inc.VAT
In
Stock
Qty:
