Model 100 Quick Change Tool Post Set

The Model 100 Quick Change Tool Post Set is supplied complete with:

  • 1x Model 100 Piston Type Tool Post
  • 1x Standard Tool Holder (Tool capacity: 5mm - 12mm [3/16" - 1/2"])
  • 1x Vee Tool Holder (Tool capacity: 5mm - 12mm [3/16" - 1/2"])
  • 1x Parting Blade Holder (for 12mm [1/2"] parting blades)
  • 1x Boring Bar Holder (Tool capacity: ø16mm [5/8"] and ø19mm [3/4"] boring bars)
  • 1x Knurling Tool/Facing Tool Holder (Tool capacity: 5mm - 12mm [3/16" - 1/2"])
Model 100 Tool Post Dimensions

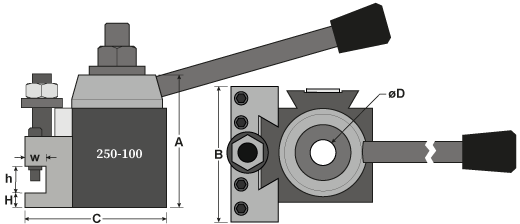

Model 100 QCTP + Slim Toolholder Drawing
Tool Holder A B C øD H-min H-max h W
Slim 76mm 76mm 79mm 14mm
(M14x1.5mm Stud)
7.5mm 26mm 12.5mm 11.5mm
Standard 11mm 30mm 14mm
All dimensions are nominal

Sizing a Tool Post for your lathe

  • Measure the height from the top of your compound slide to the spindle centre. This height should be => than H-min + the height of the tool bit cutting edge. Our Model 100 'Slim' tool holder will help on lathes with limited height.
  • Tool Size. Do the tools you want to use fit the tool holder (h and w)?
  • Mounting Stud. Will your stud fit the hole in the tool post (øD and A). If not, can it be replaced?

For links to individual tool holders please click the More tab.

Please click on links below for more information on individual tool holders:

090-070-00400 Model 100 Quick Change Tool Post Set (Piston Type) £129.34 Excl.VAT
£155.21 Inc.VAT
