Model 111 Quick Change Tool Post

Model 111 Wedge Type Quick Change Tool Post

Options:

  • Model 111 Tool Post only
  • Model 111 Tool Post + 3 Standard tool holders
  • Model 111 Tool Post + 3 Slim tool holders

Fully compatible with Model 100 tool holders

Model 111 Tool Post Dimensions

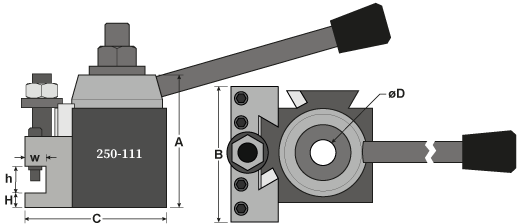

Model 111 QCTP + Slim Toolholder Drawing
Tool Holder A B C øD H-min H-max h W
Slim 76mm 76mm 79mm 14mm
(M14x1.5mm Stud)
7.5mm 26mm 12.5mm 11.5mm
Standard 11mm 30mm 14mm
All dimensions are nominal

Sizing a Tool Post for your lathe

  • Measure the height from the top of your compound slide to the spindle centre. This height should be => than H-min + the height of the tool bit cutting edge. Our Model 100 'Slim' tool holder will help on lathes with limited height.
  • Tool Size. Do the tools you want to use fit the tool holder (h and w)?
  • Mounting Stud. Will your stud fit the hole in the tool post (øD and A). If not, can it be replaced?

Model 100/111 QCTP Tool Post Upgrade for SIEG SC4 Lathe Acrobat File Fitting Instructions

For links to individual tool holders please click the More tab.

Please click on links below for more information on individual tool holders:

090-070-00420 Model 111 Quick Change Tool Post Only (Wedge Type) RRP: £66.67 Inc.VAT
£42.67 Excl.VAT
£51.20 Inc.VAT
In
Stock
Qty:
090-070-00440 Model 111 Quick Change Tool Post with 3 Std. Tool Holders RRP: £120.53 Inc.VAT
£65.76 Excl.VAT
£78.91 Inc.VAT
In
Stock
Qty:
090-070-00435 Model 111 Quick Change Tool Post with 3 Slim Tool Holders RRP: £122.70 Inc.VAT
£68.64 Excl.VAT
£82.37 Inc.VAT
Out of
Stock
Estimated Back in Stock date: To be advised
