ISO40 to ISO30 Adaptor (Drawbolt Type)

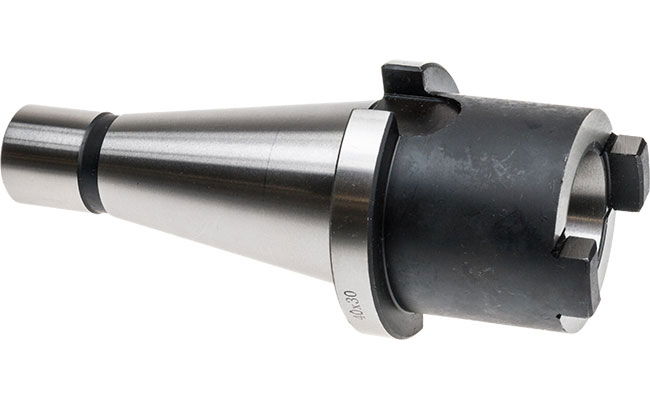

ISO40 to ISO30 taper adaptor

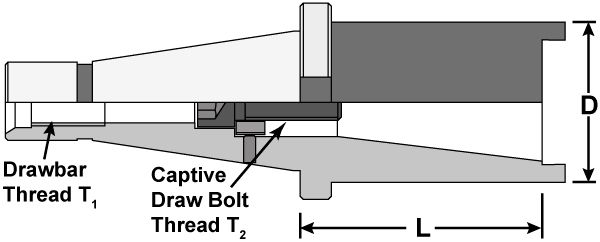

This adaptor has it's own drawbar thread to lock the adaptor in the machine's spindle, and an internal draw bolt to lock the ISO30 tool in the adaptor. (see cutaway diagram)

Code Male
Taper
Female
Taper
Diameter
D
Length
L
Drawbar
Thread T1
Draw Bolt
Thread T2
120-010-54030 ISO40 ISO30 50mm 48.5mm M16 M12
120-010-54030 ISO40 to ISO30 Adaptor (Draw Bolt Type) £34.13 Excl.VAT
£40.96 Inc.VAT
In
Stock
Qty:
