2 Flute HSS-AL End Mill - Standard Length - TiAlN Coated

Arc LogoPremium» HSS-AL TiAlN Coated End Mills

The ARC Premium branded range of end mills are made from a traceable grade of material. They are precision manufactured for consistency, quality and accuracy.

TiAlN Coated HSS-AL End Mills
Arc Premium TiAlN coated end mills are coated with the highly regarded Balzers Balinit® Futura Nano TiAlN (titanium aluminium nitride) coating offering high-performance machining and long tool life. Depending upon machine limitations, TiAlN coated end mills can operate at speeds up to 100% higher than uncoated end mills. Arc Premium TiAlN coated end mills are recommended for machining steel, cast iron and stainless steel. Click for more...

HSS-Al
2 Flute
Square End Cutter
30° Helix Angle
Suitable for plunge, ramp and side cuts
Weldon Shank
Standard End Mill
These end mills are manufactured to DIN 327 standards
TiAln Coated
e8 tolerance on diameter D1 (cutting diameter)

Click the buttons above for more information

  • For specifications, please click the Specification tab.

New Sizes added: 18mm & 20mm

2 Flute HSS-AL End Mill Standard Length TiAlN Coated

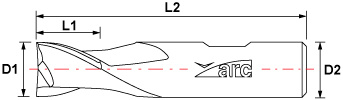

2 Flute HSS-AL End Mill - Standard Length - TiAlN Coated - Drawing
Code Cutter Diameter
D1
Shank Diameter
D2
Flute Length
L1
O.A. Length
L2
060-283-01002 2.0mm 6.0mm 4mm 48mm
060-283-01003 3.0mm 6.0mm 5mm 49mm
060-283-01004 4.0mm 6.0mm 7mm 51mm
060-283-01005 5.0mm 6.0mm 8mm 52mm
060-283-01006 6.0mm 6.0mm 8mm 52mm
060-283-01008 8.0mm 10.0mm 11mm 61mm
060-283-01010 10.0mm 10.0mm 13mm 63mm
060-283-01012 12.0mm 12.0mm 16mm 73mm
060-283-01014 14.0mm 12.0mm 16mm 73mm
060-283-01016 16.0mm 16.0mm 19mm 79mm
060-283-01018 18.0mm 16.0mm 19mm 79mm
060-283-01020 20.0mm 20.0mm 22mm 88mm
060-283-01002 2mm 2F HSS-AL End Mill Std. TiAlN RRP: £6.73 Inc.VAT
£2.55 Excl.VAT
£3.06 Inc.VAT
In
Stock
Qty:
060-283-01003 3mm 2F HSS-AL End Mill Std. TiAlN RRP: £6.73 Inc.VAT
£2.55 Excl.VAT
£3.06 Inc.VAT
In
Stock
Qty:
060-283-01004 4mm 2F HSS-AL End Mill Std. TiAlN RRP: £6.73 Inc.VAT
£2.55 Excl.VAT
£3.06 Inc.VAT
In
Stock
Qty:
060-283-01005 5mm 2F HSS-AL End Mill Std. TiAlN RRP: £6.73 Inc.VAT
£2.55 Excl.VAT
£3.06 Inc.VAT
In
Stock
Qty:
060-283-01006 6mm 2F HSS-AL End Mill Std. TiAlN RRP: £6.73 Inc.VAT
£2.55 Excl.VAT
£3.06 Inc.VAT
In
Stock
Qty:
060-283-01008 8mm 2F HSS-AL End Mill Std. TiAlN RRP: £9.45 Inc.VAT
£2.63 Excl.VAT
£3.16 Inc.VAT
In
Stock
Qty:
060-283-01010 10mm 2F HSS-AL End Mill Std. TiAlN RRP: £9.45 Inc.VAT
£2.91 Excl.VAT
£3.49 Inc.VAT
In
Stock
Qty:
060-283-01012 12mm 2F HSS-AL End Mill Std. TiAlN RRP: £11.30 Inc.VAT
£3.32 Excl.VAT
£3.98 Inc.VAT
In
Stock
Qty:
060-283-01014 14mm 2F HSS-AL End Mill Std. TiAlN RRP: £12.69 Inc.VAT
£3.98 Excl.VAT
£4.78 Inc.VAT
In
Stock
Qty:
060-283-01016 16mm 2F HSS-AL End Mill Std. TiAlN RRP: £14.73 Inc.VAT
£5.28 Excl.VAT
£6.34 Inc.VAT
In
Stock
Qty:
060-283-01018 18mm 2F HSS-AL End Mill Std. TiAlN RRP: £19.59 Inc.VAT
£7.93 Excl.VAT
£9.52 Inc.VAT
In
Stock
Qty:
060-283-01020 20mm 2F HSS-AL End Mill Std. TiAlN RRP: £21.94 Inc.VAT
£9.51 Excl.VAT
£11.41 Inc.VAT
In
Stock
Qty:
