One Shot Lubrication System

I-Spares-Lubrication-1-shot

This is a low pressure oil lubrication system. It is suitable for use on any machinery which can be lubricated manually by a hand actuated, intermittently fed oil discharge system.

It can be used to lubricate all friction points including Slides and Ways, Ball and Roller Bearings, Plain Bearings, Gears, Cams and Chains.

Lubricator (pump) and Reservoir. The one shot manual lubricator is operated by activating a piston which is connected to a pull handle. As the lubricator spring is compressed by actuating the handle, a measured quantity of oil is drawn into the piston chamber. Release of the handle forces the inlet check valve to close and the oil “shot” is forced into the distribution system under pressure of the compressed spring.

Resistance Fittings. A resistance fitting or meter unit is a fixed (non-adjustable) component designed for one-way delivery of a precise quantity of oil to a bearing or surface. The amount of oil delivered to each friction point is apportioned by the resistance fitting, not the pump. The pump controls the volume of oil available for overall system consumption.

Each lubrication point on the machine must have an assigned resistance fitting. The size of the resistance fitting depends upon the calculated oil requirement for that bearing and relative proportioning ratios of the rest of the system.

We can supply four different sizes of meter unit: 00 (smallest), 0, 1 & 2 (largest); each one able to deliver double the amount of oil as its predecessor.

To assign the sizes of the meter units required, start with the meter unit near mid-range in the friction point that requires the least amount of oil. Continue assigning sizes of all other resistance fittings in the system based on their relative size to other points. Points that require similar amounts of oil will be supplied from similar sized resistance fittings.

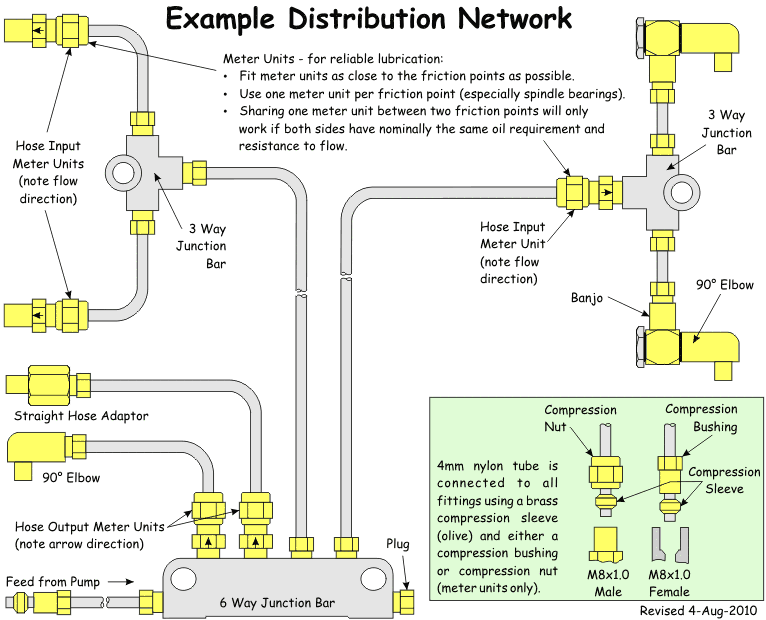

Distribution Network. Tubing plus various junctions, adapters, clips, and connection hardware make up the distribution network. The network connects the lubricator and individual resistance fittings located at or near the friction points. Typically, a single line (4mm O.D.) tube is branched at convenient locations to meet the requirements of the machine’s bearing arrangement.

To keep the feed tubes out of harms way, this Y-axis lubrication feed uses 90° Elbow fittings screwed into the saddle oilways to feed both dovetails.

Fed from each side of the column, a combination of Elbow & Banjo fittings is used to lubricate the dovetails on this Z-axis.

Pump feed to junction bar and meter units for distribution of oil to the X, Y & Z axes. Note only 1 tube for each axis but 3 way junctions are used further along the network. Z axis meter unit is also positioned further along the network.

Pull Handle Oiler

Pull-Handle-Oiler

Pull Handle Oiler with 180ml Reservoir

Delivers 3ml/Shot

Supplied with 90&deg M8 x 1.0 female hose adaptor (requires 4mm compression bushing and sleeve)

084-025-00001 Pull Handle Oiler With Bracket & 90° Hose Adaptor M8x1.0 £29.78 In Stock Qty:

One Shot Lubrication Parts Pack for Myford ML7

ML7-Lube-2

This parts pack is based on Tony Jeffree's article in Model Engineers' Workshop (Issue 161) where he describes fitting a one shot lubrication system to the ML7. It also takes into account the later revisions where "hose Input" meter units could be fitted directly to the headstock and leadscrew bearing oiling points resulting in a much neater arrangement, less work and fewer parts.

Read Tony Jeffree's article: Fitting A One-shot Lubrication System To A Myford ML7 Lathe
(375kb pdf file - Adobe Acrobat Reader required)

Read Tony Jeffree's Update: Updating the Myford ML7 one-shot lubrication system
(119kb pdf file - Adobe Acrobat Reader required)

Published with the kind permission from Tony Jeffree, and David Clark, editor of Model Engineers' Workshop magazine. You can visit their respective websites by clicking on the following links:

www.jeffree.co.uk/modelengineering.html
www.model-engineer.co.uk

Head bearing and leadscrew bearing lubrication

The pack comprises of the following parts:

Qty
Description
1
Pull Handle Oiler With Bracket & 90° Hose Adaptor M8x1.0
3
AJB0 Meter Unit - M8x1.0
4
AJB1 Meter Unit - M8x1.0
2
ASA(S)0 Meter Unit - M8x1.0
2
ASA(R)2 Meter Unit - 1/8"BSPT
4
90° Elbow Hose Adaptor - M6x1.0 Male - M8x1 Female
4 packs of 6
4mm Compression Bushing - M8x1.0 Male
4 packs of 6
4mm Compression Sleeve (Olive)
1
Plug - M8x1.0
5
Banjo Assembly - M8x1.0 Female - M8x1.0 Banjo Bolt
2
Junction Bar 2 Way - M8x1.0 Female
1
Junction Bar 3 Way - M8x1.0 Female
1
Junction Bar 6 Way Single - M8x1.0 Female
1
Junction Bar 8 Way Single - M8x1.0 Female
6m length
4x0.75mm Nylon Tube
6m length
Spring Tube Guard for 4mm tube
5 packs of 6
Ferrule for Spring Ends
1 packs of 4
6mm Tubing Clip (1 Tube)
1 packs of 4
6mm Tubing Clip (2 Tubes)
084-025-10000 One Shot Lubrication Parts for Myford ML7 £218.68 In Stock Qty:

Straight Hose Adaptor

Straight-Hose-Adaptor

M6x1.0 male - M8x1.0 female

084-025-00200 Straight Hose Adaptor - M6x1.0 Male - M8x1.0 Female £1.46 In Stock Qty:

90° Elbow Hose Adaptor

M6-90deg-Elbow

M6x1.0 male - M8x1.0 female

084-025-00250 90° Elbow Hose Adaptor - M6x1.0 Male - M8x1 Female £1.72 In Stock Qty:

4mm Compression Bushing

M8-Compression-Bushing-4mm

M8x1.0 male

Pack of 6

084-025-00300 4mm Compression Bushing - M8x1.0 Male - Pack of 6 £3.95 In Stock Qty:

4mm Compression Sleeve (Olive)

4mm-Compression-Ring

Pack of 6

084-025-00350 4mm Compression Sleeve (Olive) - Pack of 6 £1.46 In Stock Qty:

Plug

M8-Plug

M8x1.0 male

084-025-00400 Plug - M8x1.0 £1.46 In Stock Qty:

Banjo Assembly

M8-Banjo-Exploded

M8x1.0 female - M8x1.0 banjo bolt

084-025-00500 Banjo Assembly - M8x1.0 Female - M8x1.0 Banjo Bolt £3.65 In Stock Qty:

M8x1.0 Meter Unit Assembly - Hose Output

AJB-Meter-Unit-Exploded

Four different sizes of meter unit: 00 (smallest), 0, 1 & 2 (largest); each one able to deliver double the amount of oil as its predecessor.
See top of page for further information.

M8x1.0 male thread.

Supplied complete with compression nut and sleeve.

Hose output type. Note flow direction indicated by red arrow.

084-025-00099 AJB00 Meter Unit - M8x1.0 £3.65 In Stock Qty:
084-025-00100 AJB0 Meter Unit - M8x1.0 £3.65 In Stock Qty:
084-025-00101 AJB1 Meter Unit - M8x1.0 £3.65 In Stock Qty:
084-025-00102 AJB2 Meter Unit - M8x1.0 £3.65 In Stock Qty:

M8x1.0 Meter Unit Assembly - Hose Input

ASA-S-Meter-Unit-Assembly

Four different sizes of meter unit: 00 (smallest), 0, 1 & 2 (largest); each one able to deliver double the amount of oil as its predecessor.
See top of page for further information.

M8x1.0 male thread.

Supplied complete with compression nut and sleeve.

Hose input type. Note flow direction indicated by red arrow.

084-025-00110 ASA(S)00 Meter Unit - M8x1.0 £3.65 In Stock Qty:
084-025-00111 ASA(S)0 Meter Unit - M8x1.0 £3.65 In Stock Qty:
084-025-00112 ASA(S)1 Meter Unit - M8x1.0 £3.65 In Stock Qty:
084-025-00113 ASA(S)2 Meter Unit - M8x1.0 £3.65 In Stock Qty:

1/8" BSPT Meter Unit Assembly - Hose Input

ASA-Rx-Meter-Unit-Assembly

Size 2 only.

1/8" BSP Taper male thread.

Supplied complete with compression nut and sleeve.

Hose input type. Note flow direction indicated by red arrow.

084-025-00120 ASA(R)2 Meter Unit - 1/8"BSPT £3.65 In Stock Qty:

Nylon Tube and Tubing Accessories

4mm-Tube-and-Acc

4mm Nylon Tube: sold by the metre
Spring Tube Guard: now sold only in 6m lengths

084-025-00700 4x0.75mm Nylon Tube - Per Metre £1.46 In Stock Qty:
084-025-00750 Spring Tube Guard for 4mm tube - 6m Length £16.87 In Stock Qty:
084-025-00760 Ferrule for Spring Ends - Pack of 6 £2.81 In Stock Qty:
084-025-00770 4mm Tubing Clip (1 Tube) - Pack of 4 £1.46 In Stock Qty:
084-025-00780 4mm Tubing Clip (2 Tubes) - Pack of 4 £1.46 In Stock Qty:
084-025-00790 4mm Tubing Clip (3 Tubes) - Pack of 4 £1.46 In Stock Qty:
084-025-00800 6mm Tubing Clip (1 Tube) - Pack of 4 £1.46 In Stock Qty:
084-025-00810 6mm Tubing Clip (2 Tubes) - Pack of 4 £1.46 In Stock Qty:
084-025-00820 6mm Tubing Clip (3 Tubes) - Pack of 4 £1.46 In Stock Qty:

Junction Bars

Junction-Bars
084-025-00602 Junction Bar 2 Way - M8x1.0 Female £3.65 In Stock Qty:
084-025-00603 Junction Bar 3 Way - M8x1.0 Female £4.48 In Stock Qty:
084-025-00604 Junction Bar 4 Way Single - M8x1.0 Female £5.11 In Stock Qty:
084-025-00606 Junction Bar 6 Way Single - M8x1.0 Female £6.47 In Stock Qty:
084-025-00608 Junction Bar 8 Way Single - M8x1.0 Female £8.96 In Stock Qty:
084-025-00610 Junction Bar 10 Way Single - M8x1.0 Female £11.77 In Stock Qty:
